Virtual Design & Construction (VDC): Steel
The beginning of a new era in construction project delivery. VDC Steel is an innovative application of SSOE’s virtual design technology that seamlessly integrates steel design, and fabrication, delivering exceptional quality with reduced cost and a compressed schedule.
Early on we realized the potential of 3D Machine Design and Building Information Modeling (BIM) to make the process of going from concept to finished project more streamlined, accurate, and cost effective. We are now ranked in the top 5 of BIM Adopters. These powerful tools allow complex designs to be developed, visualized in 3D, and “built” in the computer.
With 3D machine design, we design and test the machine virtually. Using a 3D printer, we can also “print” individual components into a low-cost resin replica that can be tested in an existing machine on the production line. This allows us to identify necessary modifications prior to actual fabrication of the part.

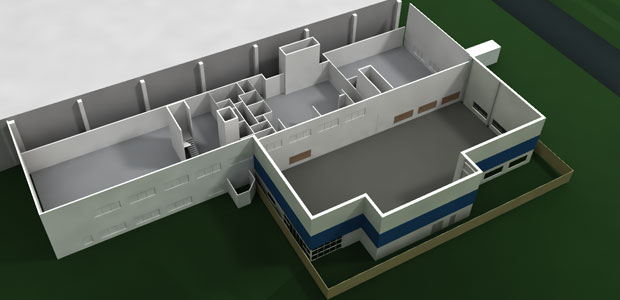

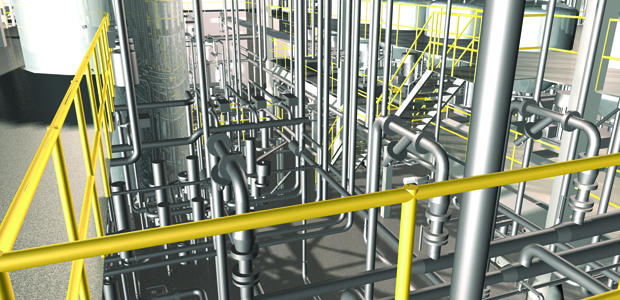

Through the use of BIM, we are able to modify or reconfigure the design of a process or facility virtually, before it is constructed. And when changes are made to one part of the design, all the related changes occur automatically. Imagine how useful it is to evaluate multiple options for retrofitting a manufacturing facility by manipulating the layout of the process on a computer screen. Using BIM, SSOE professionals can attach layers of information to any object they include in the plan. This might include part numbers, date of installation, maintenance information and so much more – an incredible boon to facility management tasks.
